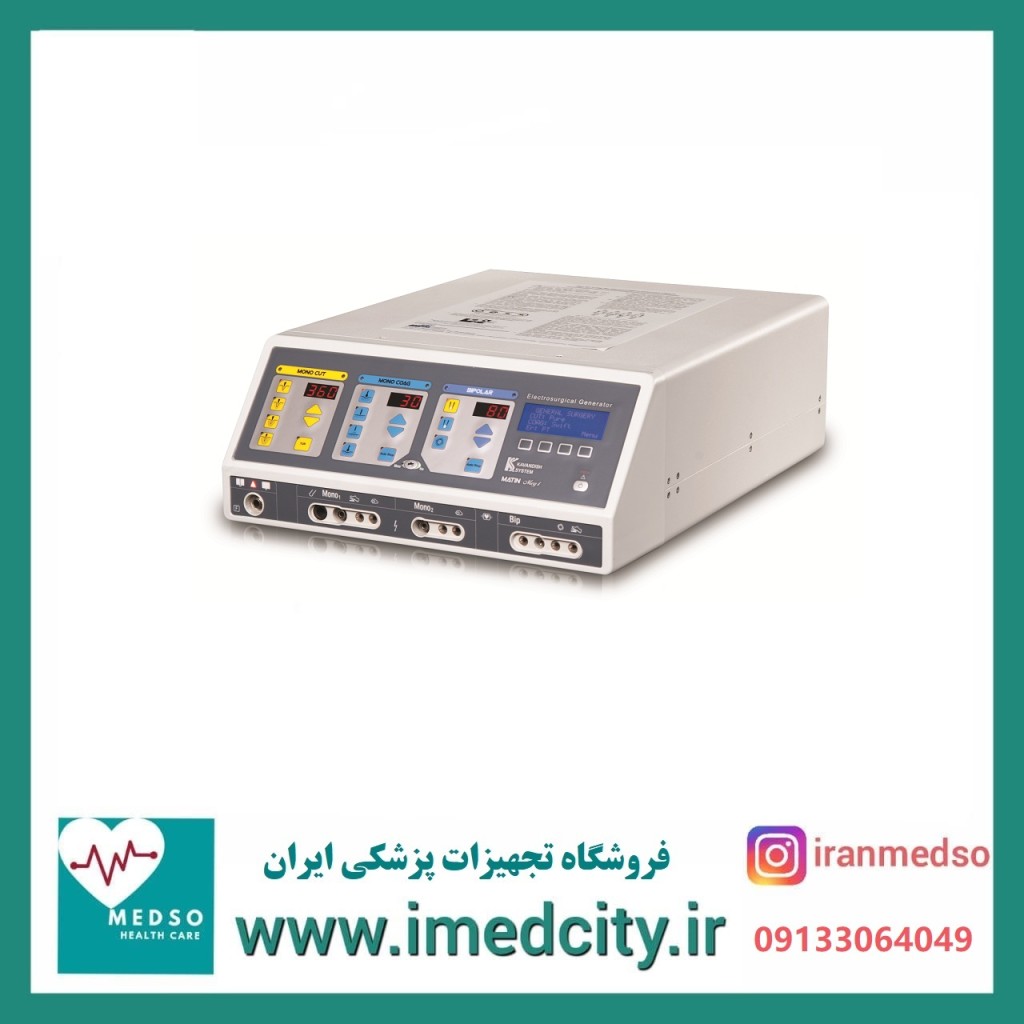

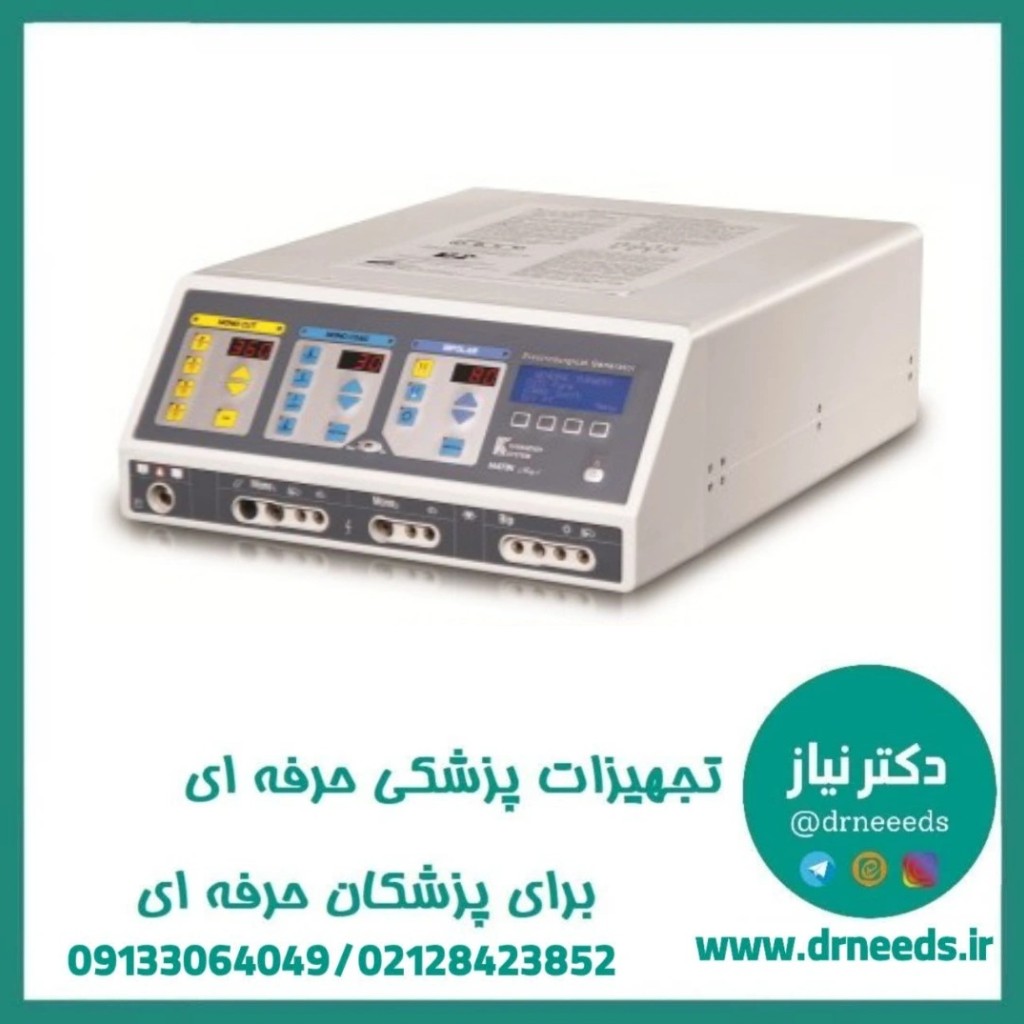

الکتروکوتر آندوسکوپی ، کولونوسکوپی ERCP کاوندیش مدلMEG1-E

Features

» Monopolar Cut (Pure)
» Monopolar Cut (Blend)
» Monopolar Cut (Papillotomy)
» Monopolar Cut (Polypectomy)
» Argon Plasma Coagulation (Pulsed Output)
» Bipolar Coagulation (Manual Bipolar)
» Monopolar Coagulation (Forced)
» Monopolar Coagulation (Spray)
» Automatic Self Checking (Spotting the system’s internal problems)
 Permanent HF Leakage current control
30 » Intelligent Algorithm for regulating cutting speed based on arc detection

programmable memory locations Extra Acoustic signal notifies surgeon during each cutting phase

intelligent power control

Technical Details

» Main Voltage: 220 VAC ± 10%, 50 Hz
» Maximum Power Consumption: 600 V.A
» Protection Class: Class I
» Type of Output: CF
» Weight: 8 kg
» Dimensions (W.H.D): 37.1 x 15.9 x 46.5 cm

Advantages of ENDO CUT at a glance

» Controlled cutting speed and coagulation effect, reduces both bleeding and perforation risk

Polypectomy & Papillotomy (Sphincterotomy)

» 4 adjustable settings to achieve desired coagulation effect

ARGON PLASMA COAGULATION in Endoscopic Procedures (Optional)

» Faster and more efficient coagulation
» Less tissue damage
» Flexible eschar creation on tissue surface
» Limits coagulation depth to approximately 3mm, resulting in minimum perforation risk
» Uniform wide-area coagulation offers a lowers risk of infection
 Non-contact coagulation with no adhesion between tissue and applicator

List of Standard Accessories

» Monopolar Handle (Disposable)
» Dual Pad - Patient Plate (Disposable)
» Cable for Patient Plate
» Monopolar Electrodes
» Dual Channel Footswitches
» Dual Channel Wireless Footswitches (optional)
» Polypectomy Snare Cable
