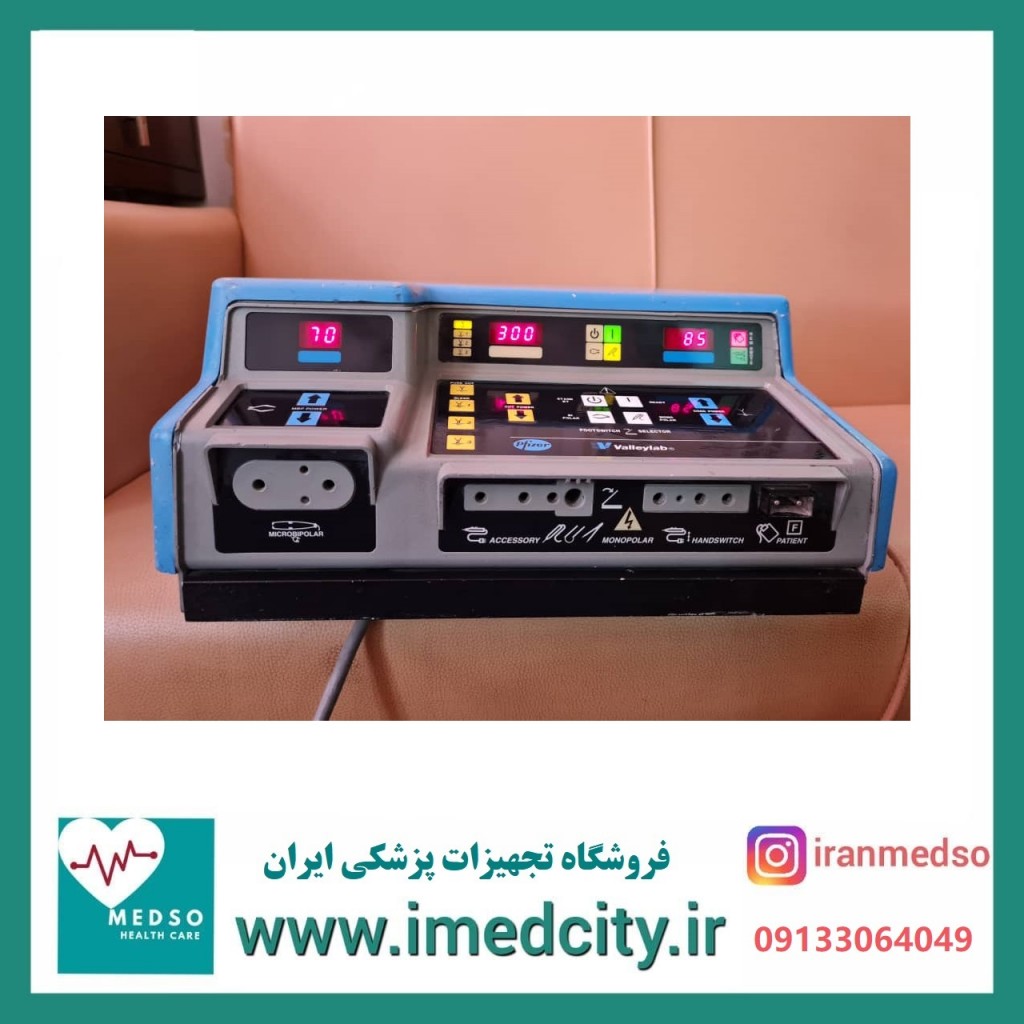

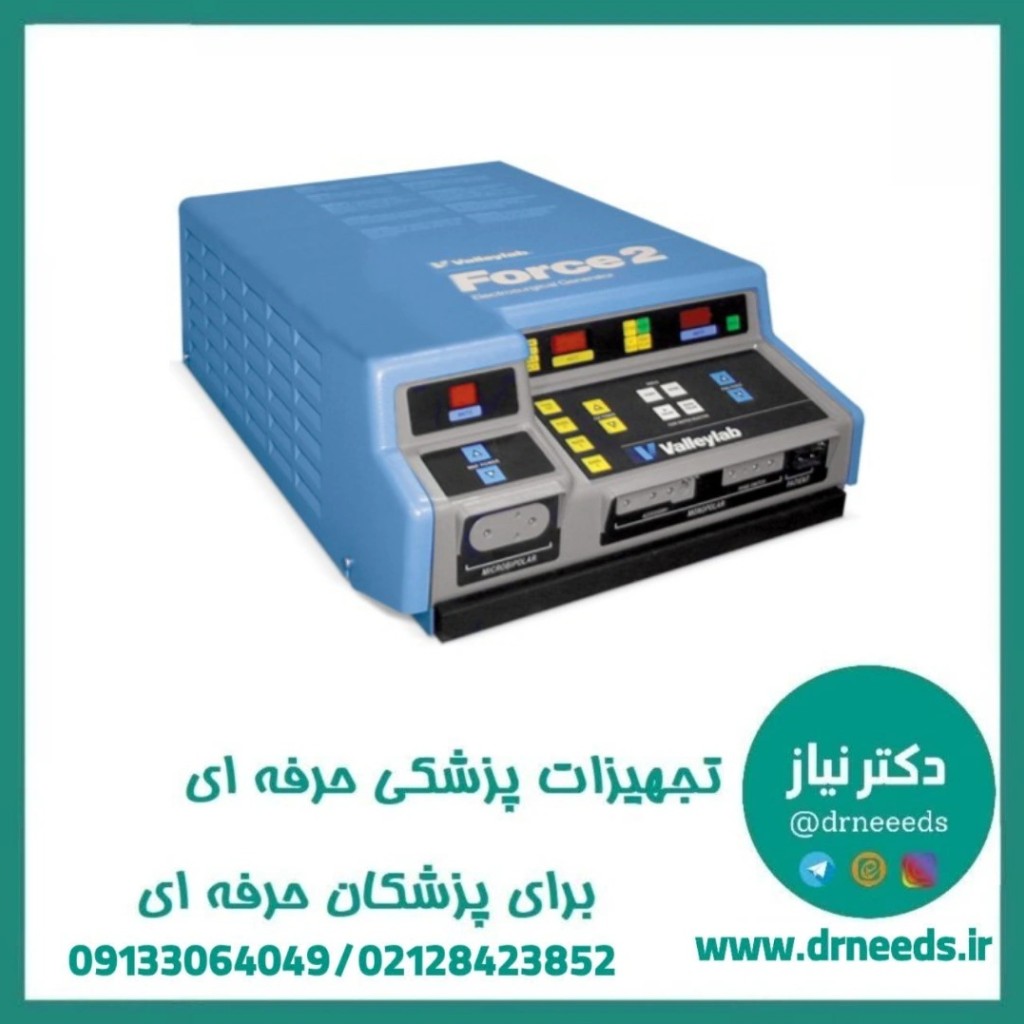

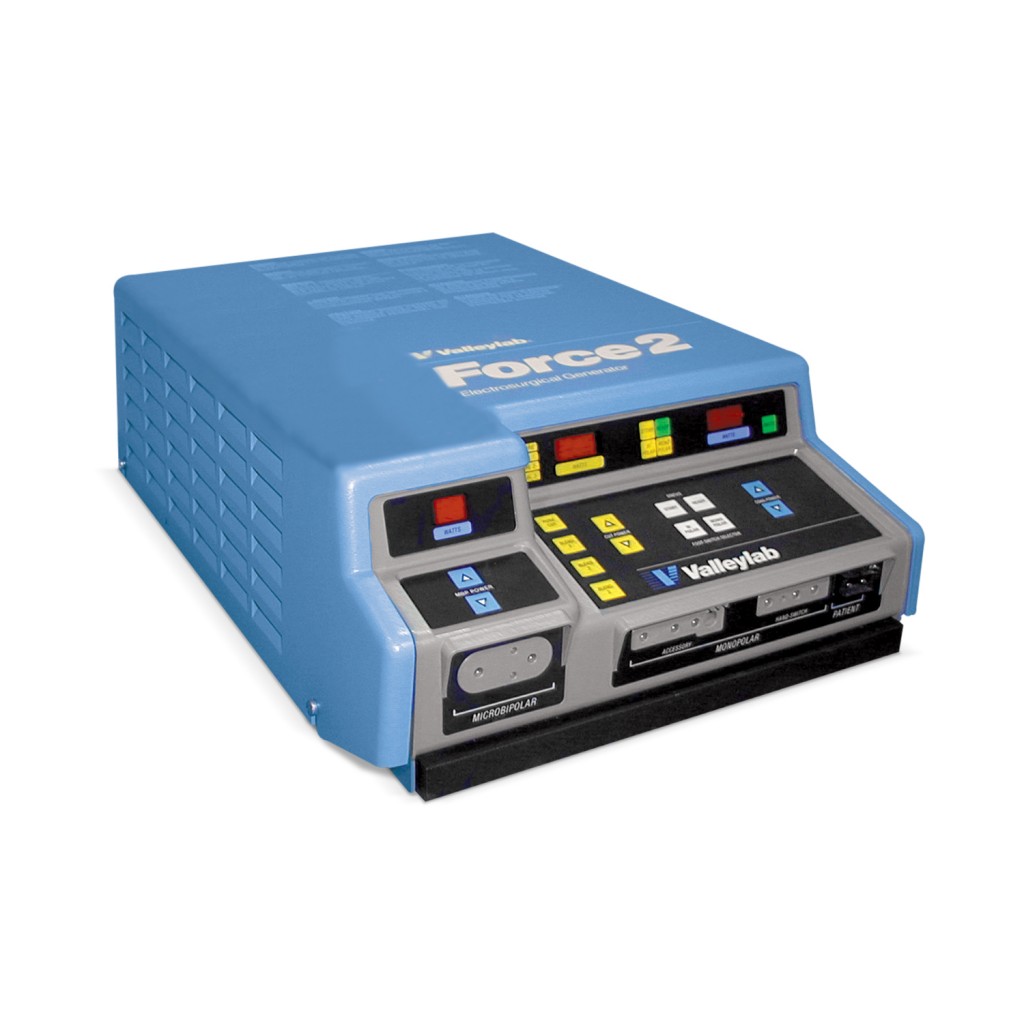

الکتروکوتر Valleylab Force 2
- دستهبندی : الکترو کوتر | تجهیزات پزشکی حرفه ای
نوع دستگاه: الکتروسرجری
دارای گواهینامه کالیبراسیون
وضعیت دستگاه: کارکرده
ارسال به سراسر کشور
The Force™ 2 ESU electrosurgical cautery unit provides cutting and coagulation in monopolar or bipolar outputs. Provides flexibility through varying degrees of hemostasis by allowing you to choose one of three preset modes. Permits two surgeons to fulgurate from a single generator, for added convenience and efficiency.
Accessories are activated only when keyed, reducing the potential for injury caused by inadvertent activation. Ensures controlled, precise desiccation with less destruction of peripheral tissue, making the Force™ 2 generator ideal for laparoscopic procedures.
Features:
• Blended Cut Modes provide flexibility through varying degrees of hemostasis
• Simultaneous Independent Coagulation permits two surgeons to fulgurate from a single generator
• Low Voltage Coagulation
• REM™ Safety is guaranteed with Valleylab's patented adaptive REM° system, which continually monitors patient impedance levels
• High Power Digital ESU
• High Performance Capabilities in a Multipurpose Generator
• Provides Cutting and Coagulation in Monopolar or Bipolar Outputs.
• Features Audible and Visual Alarms, including REM Fault Indicator, REM comes standard.
• Available with 300 watts for Output in the Cut Setting and includes a Monopolar Footswitch with and optional Bipolar Foot Switch.
• Features Blended Cut modes providing Flexibility through varying Degrees of Homeostasis and three preset modes.
• Weight: 23 lbs (10.4 kg)
• Dimensions: 8” H x 13” W x 21” L (24.0 x 33 x 53 cm)
Output Characteristics
- Pure Cut: 300 watts
- Blend 1: 250 watts
- Blend 2: 200 watts
- Blend 3: 150 watts
- Coag: 120 watts
- Low Voltage Coag: 99 watts
- Bipolar: 70 watts
Output Waveform
- Cut: 500 kHz sinusoid
- Blend 1: 500 kHz bursts of sinusoid at 50% duty cycle recurring at 31 kHz
- Blend 2: 500 kHz bursts of sinusoid at 37.5% duty cycle recurring at 31 kHz
- Blend 3: 500 kHz bursts of sinusoid at 25% duty cycle recurring at 31 kHz
- Coag: 500 kHz damped sinusoidal bursts with repetition frequency of 31 kHz
- Low Voltage Coag: 500 kHz bursts of sinusoid at 25% duty cycle recurring at 31 kHz
- Bipolar: 500 kHz sinusoid, unmodulated
Input Power Source
- Max.Current: Idle: 0.4 A; Cut: 6 A; Coag: 3 A; Bipolar: 1.5 A
- Max. Power: Idle: 50 W; Cut: 700 W; Coag: 300 W; Bipolar: 180 W
نام دستگاه | الکتروکوتر |
وضعیت | کارکرده |
برند | Valleylab |
مدل | Force 2 |
کشور سازنده | آمریکا |
قدرت خروجی (وات) | 300 |
RF | |
سیستم مونوپلار | |
سیستم بای پلار | |
متعلقات |
|
